LMG 300 A Fully Automatic Band Saw Machine

Send Inquiry

Request To Call Back

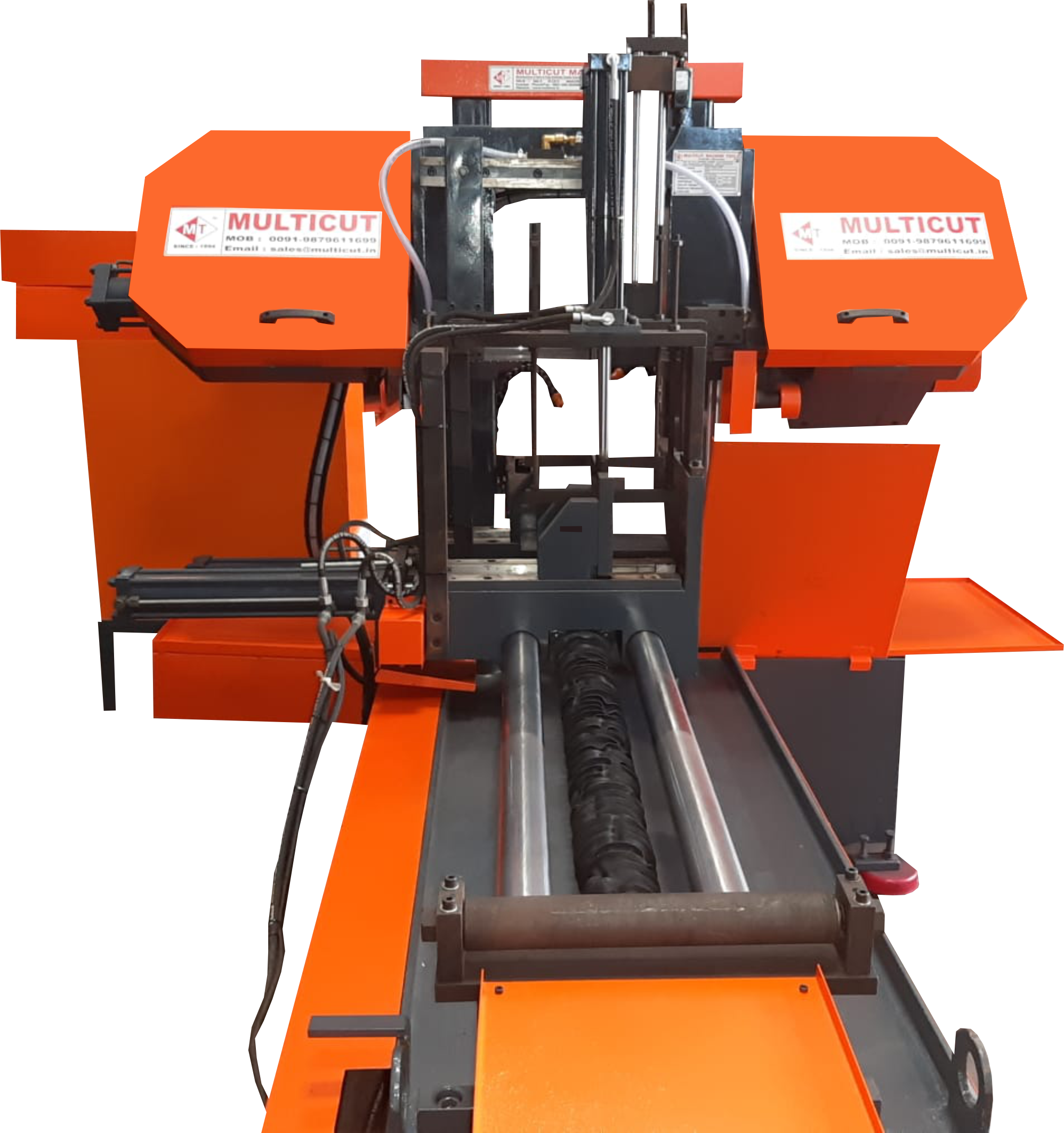

LMG 300 A Fully Automatic Band Saw Machine

Name: LMG 300 A Fully Automatic Band Saw Machine
Brand: MULTICUT MACHINE TOOLS
Price: 875000 INR
Availability: InStock

Price 875000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

LMG 300 A Fully Automatic Band Saw Machine Specification

Product Type
Fully Automatic Band Saw Machine

General Use
For metal cutting

Material
Steel

Weight (kg)
2150 Kilograms (kg)

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Cutting Function
Full Automatic

BladeSize
4100 x 34 x 0.1 mm

Cooling System
Other

Drive Type
Electric

Voltage
415 Volt (v)

Dimension (L*W*H)
2600 x 2200 x 1800 Millimeter (mm)

Feature
Environmental Friendly, Automatic Feeding, Low Noise, Good Quality, Low Energy Consumption, High Torque

Color
Gray

Warranty
1 Year

LMG 300 A Fully Automatic Band Saw Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
EX WORKS

Payment Terms
Cheque, Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
30 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
PLASTIC WRAPPING, WOODEN pallet packing for export

Main Export Market(s)
Middle East, Asia, South America, Western Europe, Australia, North America, Africa, Eastern Europe, Central America

Main Domestic Market
Punjab, West India, Dadra and Nagar Haveli, Goa, Jharkhand, Sikkim, Tripura, Meghalaya, Uttar Pradesh, Daman and Diu, Karnataka, Bihar, Arunachal Pradesh, Rajasthan, Madhya Pradesh, Lakshadweep, Central India, Telangana, Odisha, , Andhra Pradesh, Mizoram, Assam, Chhattisgarh, East India, Nagaland, North India, Kerala, Maharashtra, Gujarat, Manipur, Chandigarh, Jammu and Kashmir, Pondicherry, Haryana, Delhi, West Bengal, Tamil Nadu, All India, Uttarakhand, South India, Himachal Pradesh, Andaman and Nicobar Islands

Certifications
ISO 9001:2015, IEC: 3407003757, MSME REGISTERED COMPANY (GJ-24-0020495)

About LMG 300 A Fully Automatic Band Saw Machine

Double Column Band saw machine, Fully-Automatic MODEL - LMG 300 A, With Material Bar feeding automatic by PLC program, (VFD) AC drive for blade speed control. Linear Motion ( LM ) Guide ways and L.M block with hydraulic clamping, Hydraulic band tension, hydraulic down feed through Rexroth flow control valve and after cutting of material machine automatic stop and main frame go up. Complete hydraulic, coolant and electrical system.

Benefits of LMG 300 A Fully Automatic Band Saw Machine:

High accuracy and exactness in cutting enormous workpieces.
Expanded efficiency because of automatic taking care of and cutting.
Diminished physical work and administrator intercession.
Proficient material taking care of and negligible waste.

LMG 300 A Fully Automatic Band Saw Machine Specification:

SR.NO	PRODUCT TECHNICAL SPECIFICATIONS	MODEL
		LMG 300 A
1	CUTTING CAPACITY ROUND DIA.MM	300 MM
2	CUTTING CAPACITY RECTANGLE.MM	300 X 300 MM
3	MAIN DRIVE MOTOR HP	5 HP
4	HYDRAULIC MOTOR HP	1 HP
5	COOLANT MOTOR HP	0.13 HP
6	Chip Brush Gear Motor (H.P.)	0.25 HP
7	TOTAL POWER HP	6.38 HP
8	CUTTING SPEED(MTR/MIN)	15- 65
9	BLADE SIZE IN MM	4100 X34X1.1
10	FLOOR SPACE FOR AUTO MACHINE -LXWXH MM	2600 X 2200 X 1800
11	SINGLE INDEXING STROCK(MM FOR AUTOMATIC	0 TO 400MM
12	MULTIPLE INDEXING STROCK(MM FOR AUTOMATIC	9 TIMES
13	BAND TENSION	HYDRAULIC
14	SAW FEED CONTROL	HYDRAULIC
15	HYDRAULIC TANK CAPACITY (LITRE)	40 LTRS
16	COOLANT TANK CAPACITY (LITRE)	30 LTRS
17	NET WEIGHT AUTOMATIC M/C (APPROX) KG	2750 KG
18	CUTTING TAPER ACCURACY FOR EN-8D FOR 100MM DIA	0.2 MM
19	CUTTING LENGTH ACCURACY MM/INDEX PER STOCK	0.2 MM

FAQs of LMG 300 A Fully Automatic Band Saw Machine:

Might I at any point program explicit cutting boundaries for various materials and work pieces?

Indeed, numerous fully automatic band saw machines offer programmable controls that permit you to set cutting boundaries, for example, feed rate, cutting pace, and profundity for various materials.

What well being highlights are regularly remembered for these machines?

Wellbeing elements might incorporate automatic cutting edge monitoring, crisis stop buttons, material presence sensors, and defensive walled in areas to guarantee administrator security.

Is specific preparation expected to work a fully automatic band saw machine?

Indeed, administrators ought to go through legitimate preparation to figure out machine activity, programming, support, and wellbeing systems.

Might these machines at any point be coordinated into bigger creation lines?

Indeed, some fully automatic band saw machines can be incorporated into creation lines for consistent material taking care of and handling.

Are there support necessities for these machines?

Customary support incorporates edge investigation and substitution, oil, cleaning, and checking for any indications of wear or harm.

Are fully automatic band saw machines appropriate for high-volume cutting assignments?

Indeed, these machines are intended to deal with high-volume creation cutting with productivity and precision.

FAQs of LMG 300 A Fully Automatic Band Saw Machine:

Q: What is the LMG 300 A Fully Automatic Band Saw Machine?

A: The LMG 300 A Fully Automatic Band Saw Machine is a steel cutting machine that is designed to provide precise, efficient, and environmental-friendly cutting of metal materials. It is equipped with a PLC control system, a 4100 x 34 x 0.1 mm blade size, and a full-automatic cutting function.

Q: What are the specifications of the LMG 300 A Fully Automatic Band Saw Machine?

A: The LMG 300 A Fully Automatic Band Saw Machine has a voltage of 415 Volt (v), a weight of 2150 Kilograms (kg), and dimensions of 2600 x 2200 x 1800 Millimeter (mm). It has a drive type of electric, a color of gray, a computerized system, a low noise feature, good quality, low energy consumption, high torque, and an automatic feeding system.
