Vertical Band Saw Machine

Vertical Band Saw Machine

Product Details:

X

Product Description

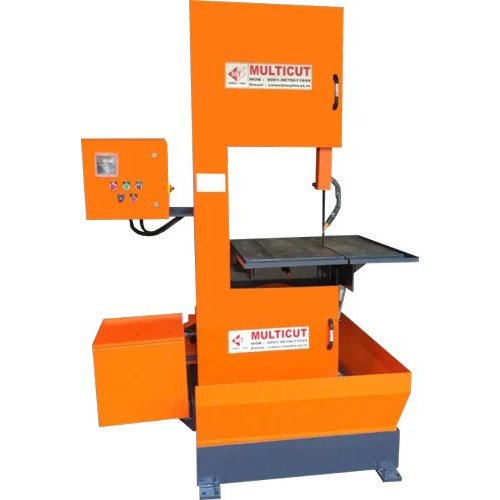

Vertical Band Saw Machine

We are offering heavy duty C-frame type Vertical Band Saw Machine which is designed and developed as per the industrial standards by using advanced electrically powered drives for the faster and efficient functioning of the machinery. It has high machining speed in between 15 to 1000 meters per minute. The structural frame has a dimension of 1000x1000x1610 with all values in millimeters. The offered Vertical Band Saw Machine is capable to cut work piece with a thickness up to 300 millimeters.

Specification

Band speed (mtr/min)

15-1000

Size/Dimension

1000x1000x1610 mm

Usage

Industrial

Brand

Multicut

Work table operation

Manual

Throat (blade to column) in mm

350

Table size in mm

700x700

No. Of band wheels

2

Net weight in approx kg

1850

Model No

VBM-300

Maximum work thickness in mm

300

Main drive hp, 1440 rpm

5 h. P.

Coolant motor hp, 1440 RPM

0. 14 hp

Blade tension

Manual

Blade size in mm

4100x34x1. 1




MULTICUT MACHINE TOOLS

* Tips on getting accurate quotes. Please include product name, order quantity, usage, special requests if any in your inquiry.



Our main export countries are Russia, Middle East, United Kingdom and USA.
