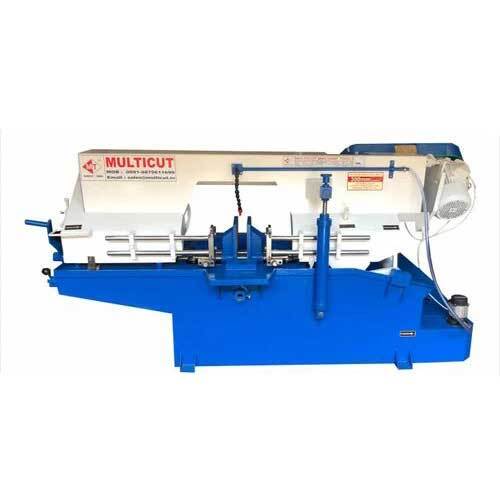

SBM-400 H Swing Type Semi Automatic Band Saw Machine

Name: SBM-400 H Swing Type Semi Automatic Band Saw Machine
Brand: MULTICUT MACHINE TOOLS
Price: 400000 INR
Availability: InStock

Price 400000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SBM-400 H Swing Type Semi Automatic Band Saw Machine Specification

Product Type
SBM-400 H Swing Type Semi Automatic Band Saw Machine

General Use
Industrial

Material
Steel

Computerized
No

Cutting Function
Semi Automatic

Drive Type
Electric

Voltage
220 Volt (v)

Feature
Environmental Friendly, Good Quality, Low Energy Consumption, High Efficiency

Color
Orange And Blue

Warranty
1 Year

SBM-400 H Swing Type Semi Automatic Band Saw Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
EX WORKS

Payment Terms
Cash in Advance (CID), Cheque

Supply Ability
15 Pieces Per Month

Delivery Time
60 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
PLASTIC WRAPPING, WOODEN pallet packing for export

Main Export Market(s)
Western Europe, Eastern Europe, South America, Middle East, Asia, Central America, North America, Australia, Africa

Main Domestic Market
North India, Gujarat, Tripura, Central India, Tamil Nadu, Jammu and Kashmir, , Sikkim, East India, Assam, Pondicherry, Manipur, West India, Rajasthan, Arunachal Pradesh, Goa, Delhi, Meghalaya, Odisha, Maharashtra, Uttar Pradesh, Daman and Diu, Kerala, Nagaland, Dadra and Nagar Haveli, Himachal Pradesh, Lakshadweep, Andaman and Nicobar Islands, Mizoram, Haryana, Chhattisgarh, Telangana, Punjab, Uttarakhand, South India, Bihar, Jharkhand, Karnataka, Madhya Pradesh, Chandigarh, Andhra Pradesh, All India, West Bengal

Certifications
ISO 9001:2015, IEC: 3407003757, MSME REGISTERED COMPANY (GJ-24-0020495)

About SBM-400 H Swing Type Semi Automatic Band Saw Machine

Since our establishment in the year 1994, we have been betrothed in offering SBM-400 H Swing Type Semi Automatic Band Saw Machine to our clients. By utilizing pristine quality components and sophisticated techniques, this machine is manufactured under the surveillance of our veteran professionals. Based on automatic operations, the provided machine is convenient to be used in automotive, construction and other industries for cutting metal with high accuracy. Apart from this, the offeredmachine is accessible from us at the most economical prices.

SBM-400 H Swing Type Semi Automatic Band Saw Machine features:

Adjustable Hydraulic cutting feed
Blade alignment in vertical & horizontal side
Carbide guide with roller bearings
Higher hydraulic cutting speed
Less power consumption due to continuous cutting
Less tooling cost due to higher blade life
Good parallelism in cutting
Heavy duty hydraulic clamping vice for job
Heavy duty worm/helical reduction gear box
Optional swivel vice for angle cutting
Complete electrical system
Complete hydraulic system
Complete coolant system
Machine instruction manual
Chip brush for scrap removing
Longer service life
Low power consumption
Strong construction
High efficiency

SBM-400 H Swing Type Semi Automatic Band Saw Machine Specifications:

SR.NO	PRODUCT TECHNICAL SPECIFICATIONS	MODEL
		SBM 400 H
1	CUTTING CAPACITY ROUND BAR IN MM	400
2	CUTTING CAPACITY SQUARE BAR IN MM	400 X 300
3	MAIN DRIVE MOTOR HP 1440 RPM	3 HP
4	HYDRAULIC MOTOR HP 1440 RPM	1 HP
5	COOLANT MOTOR HP- 1440 RPM	0.13 HP
6	Total Power H.P.	4.13 HP
7	BLADE SIZE IN MM	4570X 34 X1.1
8	Band Tension	HYDRAULIC
9	Saw Feed Control	HYDRAULIC
10	JOB CLAMPLING	HYDRAULIC
11	Hydraulic Tank Capacity (Litre)	30
12	COOLANT TANK CAPACITY (LITRE)	30
13	CUTTING SPEED MTR/MIN	24-37-54-97
14	FLOOR SPACE L X W X H	2750 X 850X1200
15	NET WEIGHT IN KG	1450
16	Cutting Taper Accuracy, for En-8mm /100mm	0.2 MM

FAQs of SBM-400 H Swing Type Semi Automatic Band Saw Machine:

Q: What is the SBM-400 H Swing Type Semi Automatic Band Saw Machine?

A: The SBM-400 H Swing Type Semi Automatic Band Saw Machine is a semi-automatic band saw machine designed for industrial use. It is capable of cutting steel materials with an electric drive type.

Q: What are the specifications of the SBM-400 H Swing Type Semi Automatic Band Saw Machine?

A: The SBM-400 H Swing Type Semi Automatic Band Saw Machine has a cutting function of semi-automatic, is made of steel, has an electric drive type, and is designed for industrial use.
