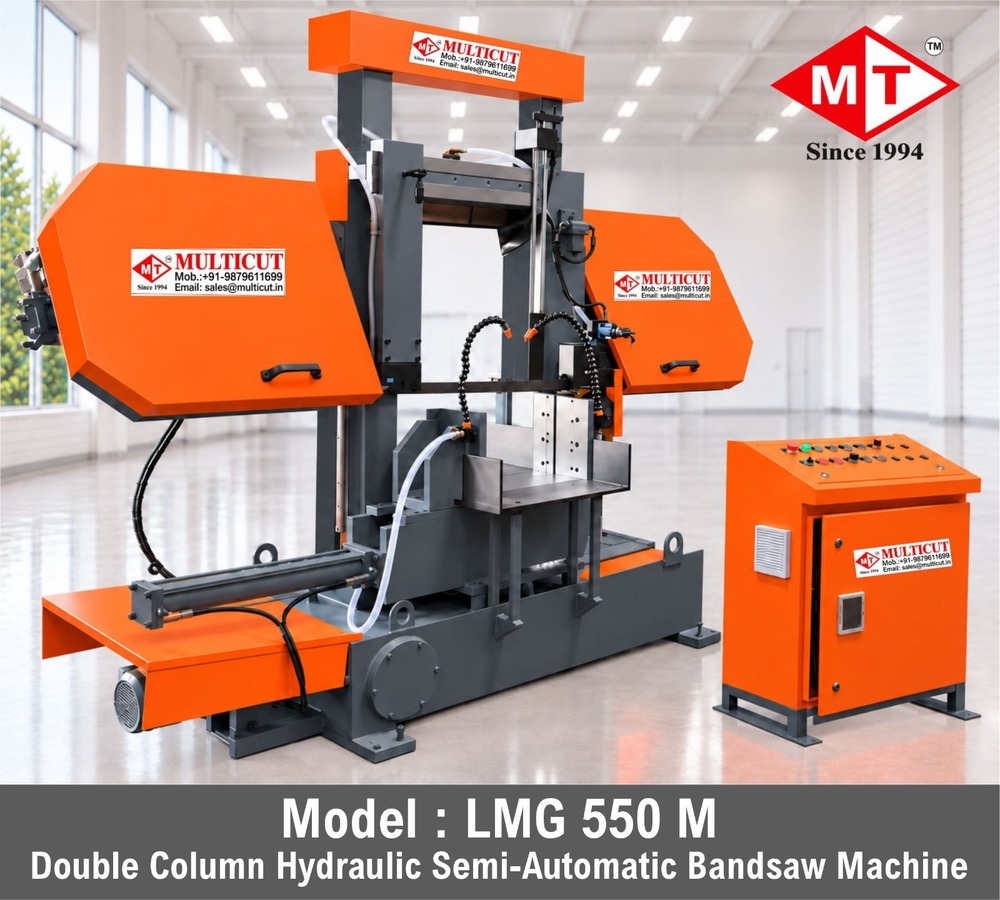

LMG 550 M Semi Automatic Horizontal Double Column Band Saw Machine

The LMG 550 M Semi Automatic Horizontal Double Column Band Saw Machine is an industrial-grade sawing machine designed to provide superior cutting performance and accuracy. This machine is made of high-quality mild steel, making it strong and durable. It has a weight of 4750 kg and is available in a green color. The saw is designed for a cutting speed of 15 to 65 m/m, making it suitable for a wide variety of applications. This machine is equipped with a powerful motor that provides maximum cutting power and accuracy. It also has a fully automated control system that allows for precise and repeatable cuts. The saw is designed to be easy to use and understand, with a simple user interface and intuitive controls. The saw has a wide range of safety features, such as a safety guard to protect the operator from injury. The LMG 550 M Semi Automatic Horizontal Double Column Band Saw Machine is an ideal choice for any industrial cutting application. It is designed to provide superior cutting performance and accuracy, while also being easy to use and understand. This machine is sure to provide you with reliable and accurate cutting results.

SR.NO	PRODUCT TECHNICAL SPECIFICATIONS	MODEL
		LMG 550 M
1	CUTTING CAPACITY ROUND DIA.MM	550 MM
2	CUTTING CAPACITY RECTANGLE.MM	550X550NN
3	MAIN DRIVE MOTOR HP	10 HP
4	HYDRAULIC MOTOR HP	1.5 HP
5	COOLANT MOTOR HP	0.24 Hp
6	Chip Brush Gear Motor (H.P.)	0.25 HP
7	TOTAL POWER HP	12 HP
8	CUTTING SPEED(MTR/MIN)	15-65
9	BLADE SIZE IN MM	6000X 41X1.3
10	FLOOR SPACE FOR AUTO MACHINE -LXWXH MM	3700X 1650X 2700
11	BAND TENSION	HYDRAULIC
12	SAW FEED CONTROL	HYDRAULIC
19	Pusher INDEXING STROKE	0 TO 350 MM
13	HYDRAULIC TANK CAPACITY (LITRE)	60 LTRS
14	COOLANT TANK CAPACITY (LITRE)	60 LTRS
15	NET WEIGHT SEMI AUTOMATIC M/C (APPROX) KG	4750 KG
17	CUTTING TAPER ACCURACY FOR EN-8MM/100MM	0.2 MM
