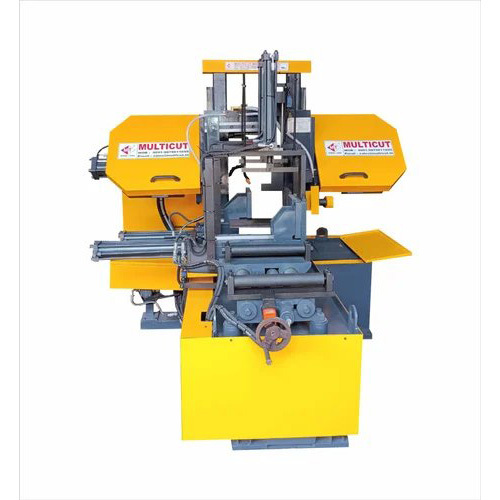

LMG 550 A-NC Fully Automatic Horizontal Double Column Band Saw Machine - (L M Guide Type)

The LMG 550 A-NC Fully Automatic Horizontal Double Column Band Saw Machine (L M Guide Type) is an industrial-grade sawing machine designed for cutting large pieces of mild steel. It is equipped with an electric drive system and is capable of cutting pieces with a maximum size of 550 mm in diameter. It is designed to provide high-precision cutting with minimal effort and time. The saw is constructed with a double column design, which ensures stability and accuracy. It is equipped with a high-precision guide system and adjustable saw blade speed, allowing for accurate cutting of complex shapes. The saw is also equipped with a hydraulic clamping system, which ensures that the material is securely held in place while cutting. The saw is also equipped with a cooling system, which helps to reduce friction and heat buildup during operation. The LMG 550 A-NC is designed for easy operation and maintenance. It is equipped with a user-friendly control panel, which allows for easy adjustment of saw blade speed and other settings. The saw is also equipped with a self-diagnostic system, which helps to identify any potential problems and alert the operator. The LMG 550 A-NC is a reliable and durable sawing machine that is designed to provide high-quality cutting results. It is ideal for industrial applications, such as automotive and aerospace manufacturing, and is capable of cutting large pieces of mild steel with minimal effort and time.

SR.NO	PRODUCT TECHNICAL SPECIFICATIONS	MODEL
		LMG 550 A
1	CUTTING CAPACITY ROUND DIA.MM	550 MM
2	CUTTING CAPACITY RECTANGLE.MM	550X550NN
3	MAIN DRIVE MOTOR HP	10 HP
4	HYDRAULIC MOTOR HP	1.5 HP
5	COOLANT MOTOR HP	0.24 Hp
6	Chip Brush Gear Motor (H.P.)	0.25 HP
7	TOTAL POWER HP	12 HP
8	CUTTING SPEED(MTR/MIN)	15-65
9	BLADE SIZE IN MM	6000X 41X1.3
10	FLOOR SPACE FOR AUTO MACHINE -LXWXH MM	3700X 2600X 2700
11	SINGLE INDEXING STROCK(MM FOR AUTOMATIC	0 TO 350 MM
12	MULTIPLE INDEXING STROCK(MM FOR AUTOMATIC	9 TIMES
13	BAND TENSION	HYDRAULIC
14	SAW FEED CONTROL	HYDRAULIC
15	HYDRAULIC TANK CAPACITY (LITRE)	60 LTRS
16	COOLANT TANK CAPACITY (LITRE)	60 LTRS
17	NET WEIGHT AUTOMATIC M/C (APPROX) KG	6100 KG
18	CUTTING TAPER ACCURACY FOR EN-8D FOR 100MM DIA	0.2 MM
19	CUTTING LENGTH ACCURACY MM/INDEX PER STOCK	0.2 MM
