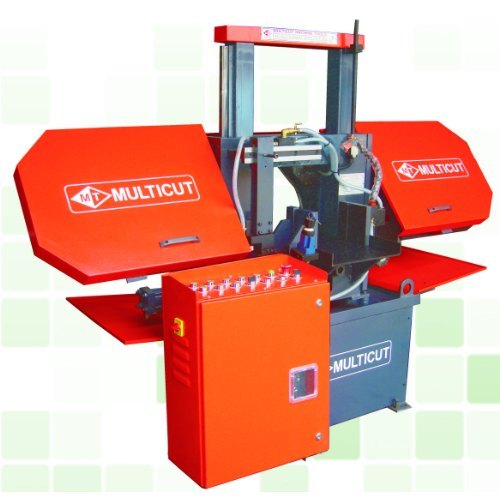

LMG-300 M Semi Automatic Metal Band Sawing Machine

Name: LMG-300 M Semi Automatic Metal Band Sawing Machine
Brand: MULTICUT MACHINE TOOLS
Price: 350000.0 INR
Availability: InStock

Price 350000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

LMG-300 M Semi Automatic Metal Band Sawing Machine Specification

Product Type
Metal Band Sawing Machine

General Use
Industrial

Material
Mild Steel

Type
Metal Cutting Machine

Weight (kg)
2150 Kilograms (kg)

Computerized
No

Automatic
Yes

Control System
PLC Control

Cutting Function
Semi Automatic

BladeSize
4100 x 34 x 1.1 mm

Drive Type
Electric

Dimension (L*W*H)
2600 x 2500 x 1800 Millimeter (mm)

Feature
Good Quality, High Efficiency, Low Energy Consumption

Color
Orange

Warranty
1 Year

LMG-300 M Semi Automatic Metal Band Sawing Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Week

Delivery Time
6 Week

About LMG-300 M Semi Automatic Metal Band Sawing Machine

High quality Fully Automatic Metal Band Sawing Machine is made available by us that is powerful sawing machines that can carry out batch cutting of a wide variety of materials and can even be left running overnight, greatly increasing productivity. A band saw is also called as band saw, which is a powered saw with a long and sharp blades consisting of a continuous band of toothed metal stretched between wheels to cut targeted materials. This machine is very effective and useful.

Fully Automatic Metal Band Sawing MachineSpecification

Band Tension	Hydraulic
Usage/Application	Industrial
Machine Type	Fully Automatic
Machine Weight	2150 Kg (Automatic)
Blade Size	4100 x 34 x 1.1 mm
Capacity	300 mm (Round),300 x 300 mm (Rectangle)
Model Name/Number	LMG-300 M
Coolant Tank Capacity	50 L
Cutting Speed	15 - 95 m/min
Coolant Motor	0.13 HP at 2800 rpm
Chip Brush Gear Motor	0.25 HP
Total Power	6.39 HP
Single Indexing Stroke	0 to 400 mm
Main Drive Power	5 HP at 1440 rpm
Hydraulic Tank Capacity	80 L
Hydraulic Motor Power	1.0 HP at 1440 rpm
Floor Space Size	2600 x 2500 x 1800 mm
Cutting Taper Accuracy	plus minus 0.2 mm
Cutting Length Accuracy	0.2 mm.
