Home » Products » Swing Type Manual Bandsaw Machine

Swing Type Manual Bandsaw Machine

The idea of using Swing Type Band Saws date back to the early 1800s. With the changing time and emerging technology, we are capable of producing the mentioned range to helps other manufacturers produce precise and reliable results using up-to-the machinery. Continuous flexing of the blade helps in ensuring the smooth cuts in the minimum time period. Manual Band Saw Machine is available with blade alignment for rendering excellent parallelism in cutting. It is combined with bearings and carbide guide for optimum performance

Optional Components

Depending upon the requirement, bulletined below components can be availed with the machine:

  • Adjustable automatic guide arm
  • Electrically powered chip conveyor
  • Monitoring system for blade deflection
  • Spray mist cooling system
Manual Swing Arm Type Band Saw Machine
close
Manual Swing Arm Type Band Saw Machine
SBM 200 M

Manual Swing Arm Type Band Saw Machine

Manual Swing Arm Type Band Saw Machine

Our company is engaged in offering Manual Swing Arm Type Band Saw Machine with various specifications. Reasonable for all kinds of cutting requirements, these immaculately built machine finds broad application in the automotive industries and workshops. Developed and engineered in conformity with the international standards, our machine is acknowledge for providing fault-free performance and longer services life. Patrons are given by us precision engineered Manual Swing Arm Type Band Saw Machine at market leading prices.

Technical Data

SBM - 200 M

Cutting Capacity


Round Bar In Mm

200

Square Bar In Mm

200 X 200

Main Drive Hp 1440 Rpm

1 HP

Hydraulic Motor H.P. 1440 Rpm

0.5 HP

Coolant Motor Hp 1440 Rpm

0.14 HP

Blade Size In Mm

3000 X 27 X 0.9

Cutting Speed (MTR / Min)

24 - 76

Coolant Tank In Litre

40

Floor Space L X W X N

1550 X 575 X 875

Net Weight In Kg

410

SBM 400 M Manual Bandsaw Machine
close
SBM 400 M Manual Bandsaw Machine
SBM 400 M

SBM 400 M Manual Bandsaw Machine

Supported by a team of qualified professionals, we have been engaged in presenting premium quality Manual Bandsaw Machine. Suited for various types of cutting need of the clients, this machine is widely used in automotive industries and workshops. This machine is available in various technical specifications to suit the exact metal cutting requirements of the clients. It is manufactured using utmost quality components and advanced technology under strict industry laid norms. Further, we offer this Manual Bandsaw Machine within stipulated time-frame.


Special Features:
  • Adjustable Hydraulic cutting feed
  • Blade alignment in vertical & horizontal side
  • Carbide guide with roller bearings
  • Higher hydraulic cutting speed
  • Less power consumption owing to continuous cutting
  • Less tooling cost due to higher blade life
  • Good parallelism in cutting
  • Heavy duty hydraulic clamping vice for job
  • Heavy duty worm/helical reduction gear box
  • Optional swivel vice for angle cutting
  • Complete electrical system
  • Complete hydraulic system
  • Complete coolant system
  • Machine instruction manual
  • Chip brush for scrap removing

Benefits

  • Cutting speed is very high as compared to power hacksaw
  • Power saving because of high speed cutting
  • Material saving because of endless circular blade of 0.9 mm thickness & less taper cutting
  • Blade cost saving because of longer blade life
  • Machine life is double as compared to power hacksaw
  • Labour cost & time saving because of high speed cutting
  • Blade has continuous cutting & no idle stroke like power hacksaw
  • Swing type action for smoother & faster cutting of larger section material
  • Good parallelism cutting due to adjustable blade guide on vertical & horizontal side

Technical Data

SBM - 400 M

Cutting Capacity


Round Bar In Mm

400

Square Bar In Mm

400 X 400

Main Drive Hp 1440 Rpm

3 HP

Hydraulic Motor H.P. 1440 Rpm

1 HP

Coolant Motor Hp 1440 Rpm

0.14 HP

Blade Size In Mm

4100 X 34 X 1.1

Cutting Speed (MTR / Min)

24 - 76

Coolant Tank In Litre

75

Floor Space L X W X N

2750 X 850 X 1200

Net Weight In Kg

1250

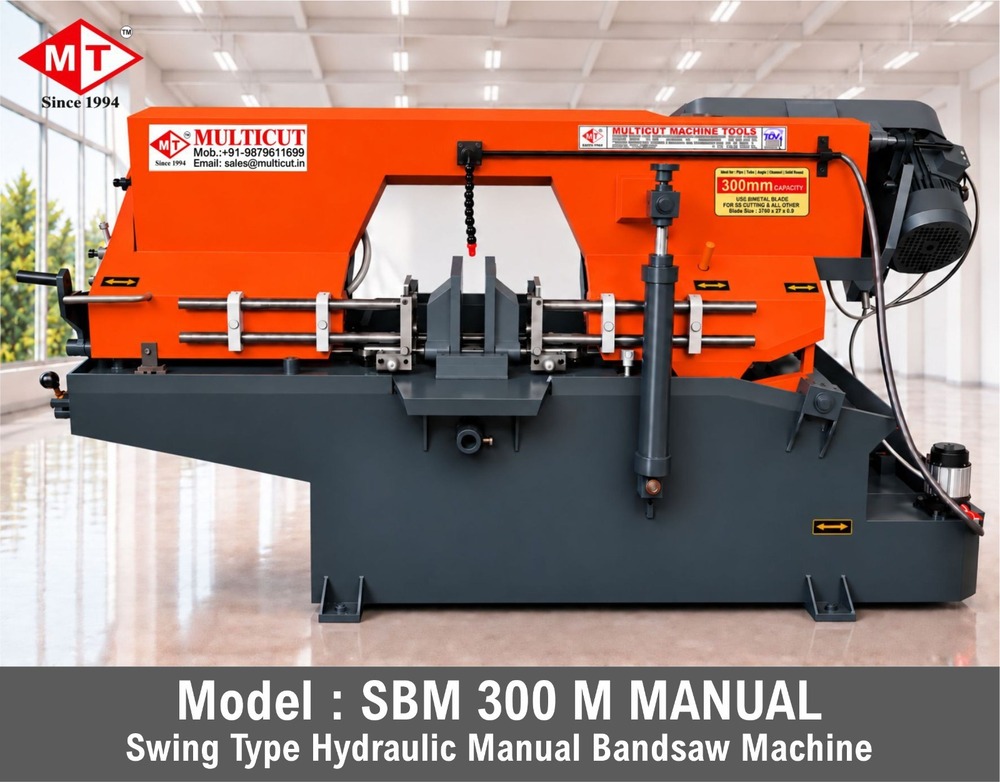

Swing Type Manual Bandsaw Machine
close
Swing Type Manual Bandsaw Machine
SBM-300 M

Swing Type Manual Bandsaw Machine

As an illustrious firm we are intended to manufacture, export and supply a paramount quality Swing Type Manual Bandsaw Machine. The offered machine is manufactured under the direction of our diligent team of experts using finest quality components in tandem with international standards. Provided machine is ideal for cutting metal in automotive, construction and engineering industries. Also, our valued clients can purchase this Swing Type Bandsaw Machine from us in various specifications at negotiable prices.

Features:

  • Excellent cutting
  • Hassle free performance
  • Low maintenance
  • Manual operation

Technical Details:

Technical Data SBM-300M
Cutting Capacity
Round Bar In Mm 300
Square Bar In Mm 300 x 300
Main Drive Hp 1440 Rpm 2 HP
Hydraulic Motor H.P 1440 Rpm 0.5 HP
Coolant Motor Hp 1440 Rpm 0.14 HP
Blade Size In Mm 3760 x 27 x 0.9
Cutting Speed (Mtr / Min) 24 - 76
Coolant Tank In Litre 60
Floor Space l x W x N 2450 x 850 x 1250
Net Weight In Kg 850




Major Export Countries are Russia , Middle East, United Kingdom, USA.
